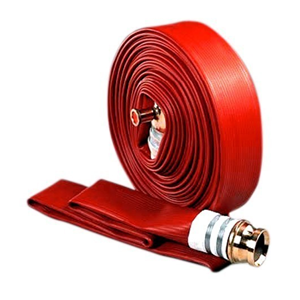

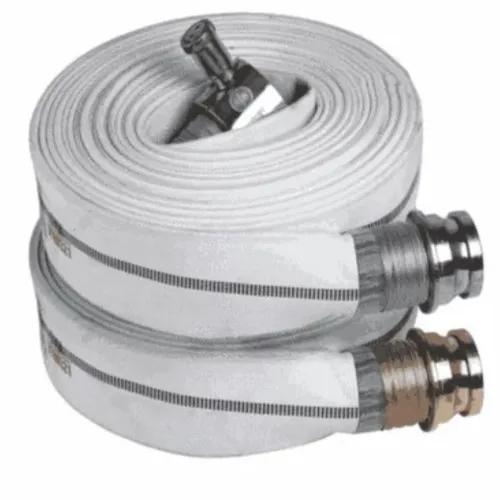

FIRE DELIVERY HOSE PIPE
Hose reel is a fire-fighting appliance consisting of a reel with water supply, manual nlet stop valve adjacent to the reel, semi rigid hose and shut off nozzle for firefighting
The fire hose reel drum available in 2 types – 20 & 30 meter pipes
- Leak-Proof Coupling
- Lightweight and Flexible
- High Pressure Resistance
- Standard Compliance
Performance Test
- Hydraulic Test : Tested at 21 Kgf/cm2
- Test Pressure : 21 bar for 1 min
- Flow test : 1800 lpm @ 7 bar
Technical Specification
- Conforming to : IS: 636, Type A & B
- Size : 63mm x 7.5 / 15/ 30meters
- Type : Canvas, Reinforced Rubber Lined Woven Jacket, Water percolating
