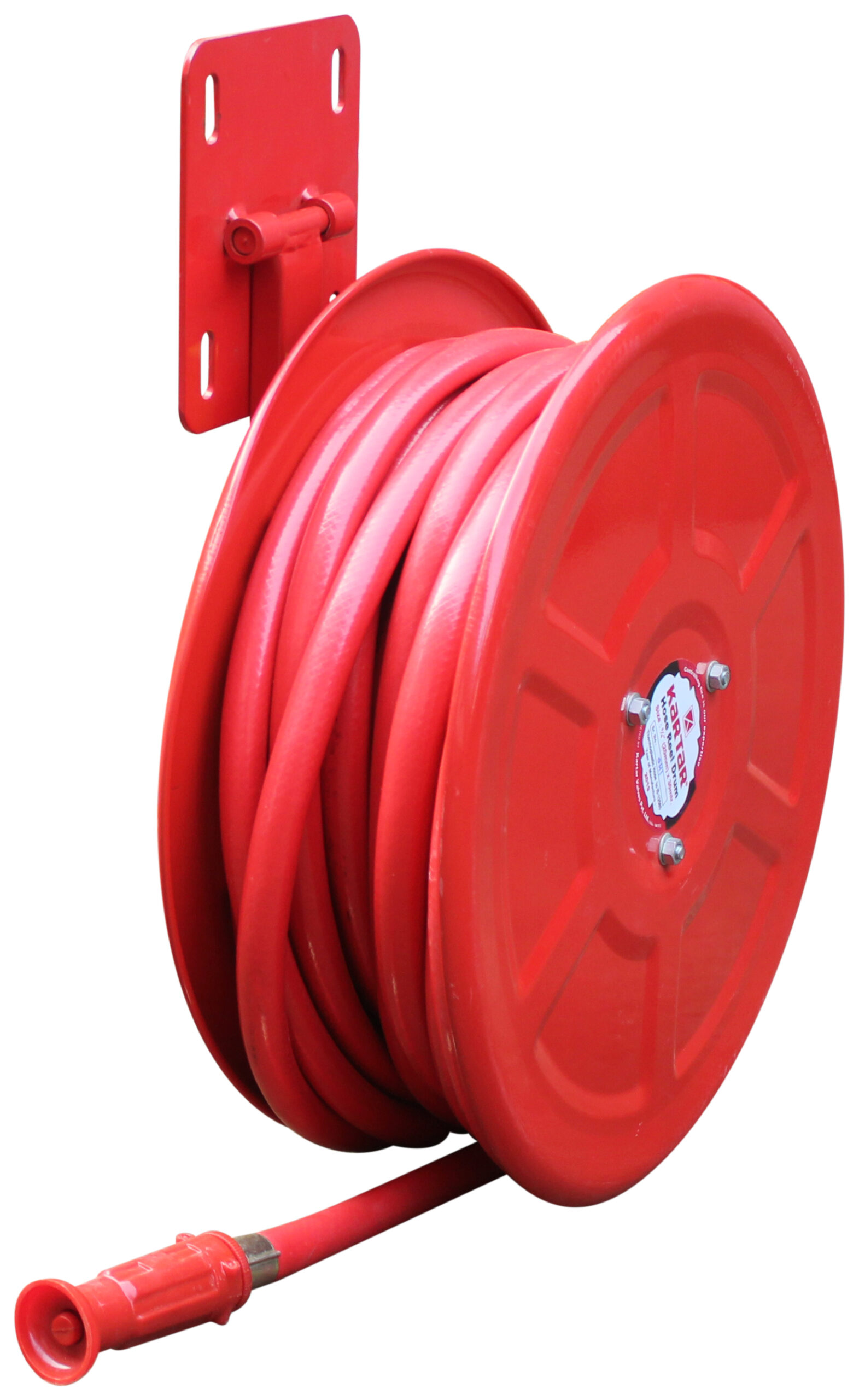

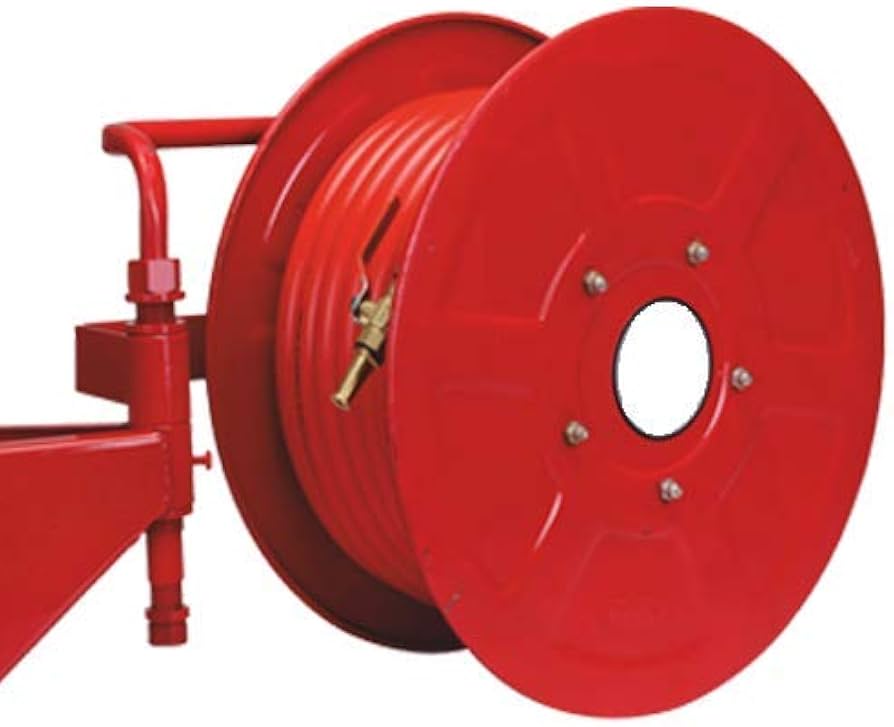

FIRE HOSE REEL DRUM
Hose reel is a fire-fighting appliance consisting of a reel with water supply, manual nlet stop valve adjacent to the reel, semi rigid hose and shut off nozzle for firefighting
The fire hose reel drum available in 2 types – 20 & 30 meter pipes
- Flexible Hose
- Easy Deployment
- Controlled Water Flow
- Standard Compliance
Performance Test
- Hydraulic Test :Tested at 21 Kgf/cm2 Range & Water Flow rate test at 10 Kgf/cm2
- (A) Discharge :24 LPM
- (B) Range (Jet Length): 6 Mtr (Min)
- Halogram : Sticker Stuck On Wheel
Technical Specification
- Conforming to : IS:884/1958
- Size :Inlet 1" Threaded Inlet Connection
- Type : Swinging 180° Wall Mounting
- Outlet : 3/4", 1", 1-1/2" outlet connection for Hose to accommodate 20/30/40 Mtrs. Hose
